ELPICO AC-88 Mk II P.A. AMPLIFIER - CIRCUIT DIAGRAMS

COURTESY OF IAN WOLEDGE, HAMPSHIRE, ENGLAND:

Ian repairs, services, & restores amps and associated equipment. He is based in the Basingstoke/Reading/Newbury area, and can be contacted on 07771-504806 or at irwoledge@outlook.com .

A. PRE-AMP:

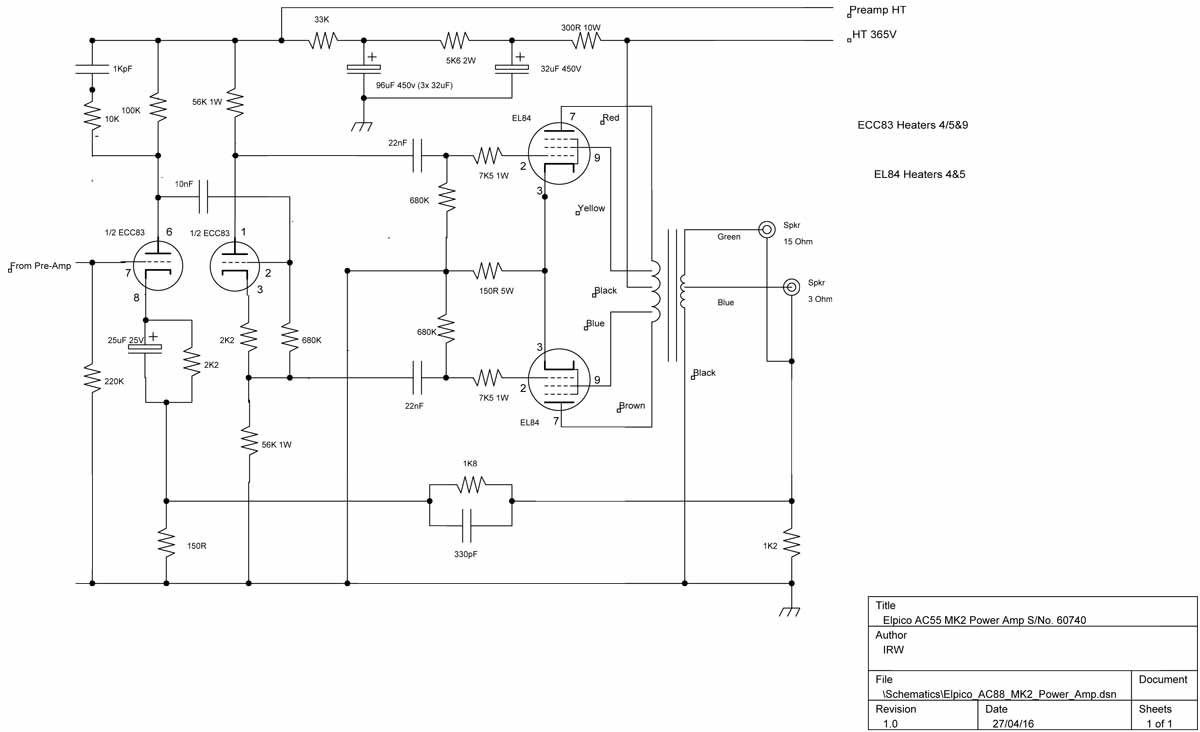

B. POWER STAGE:

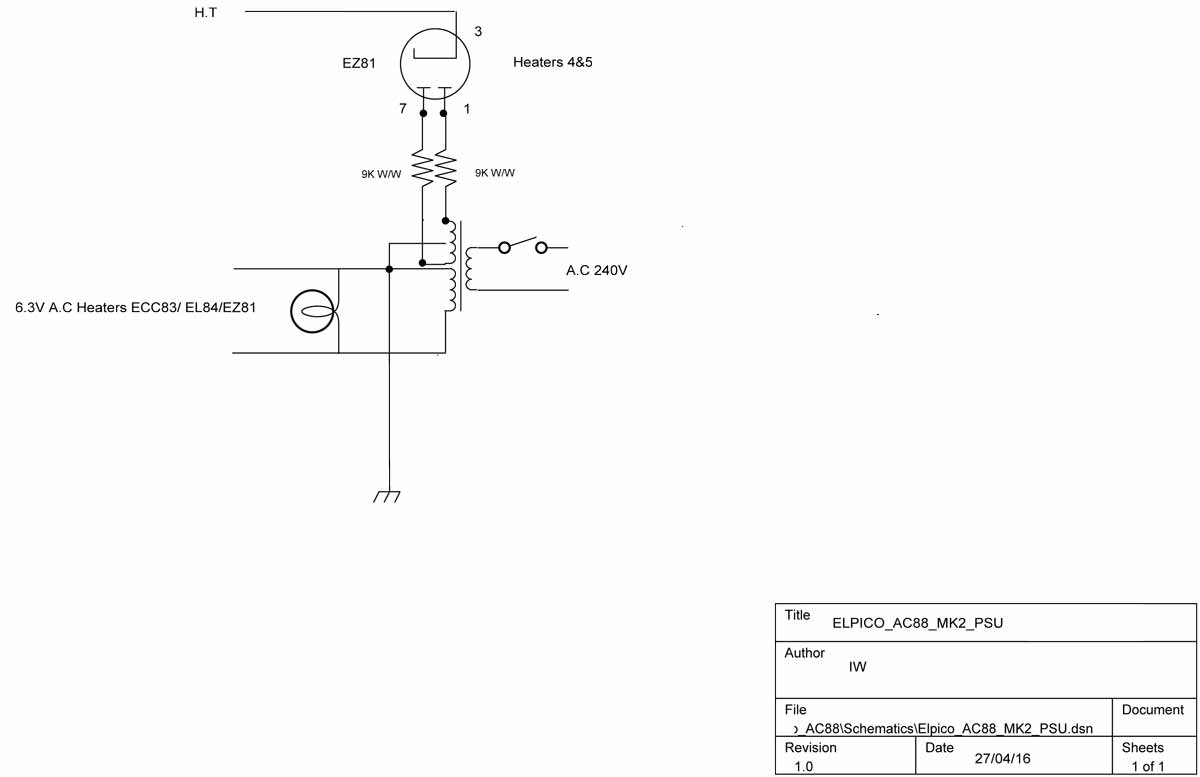

C. PSU:
