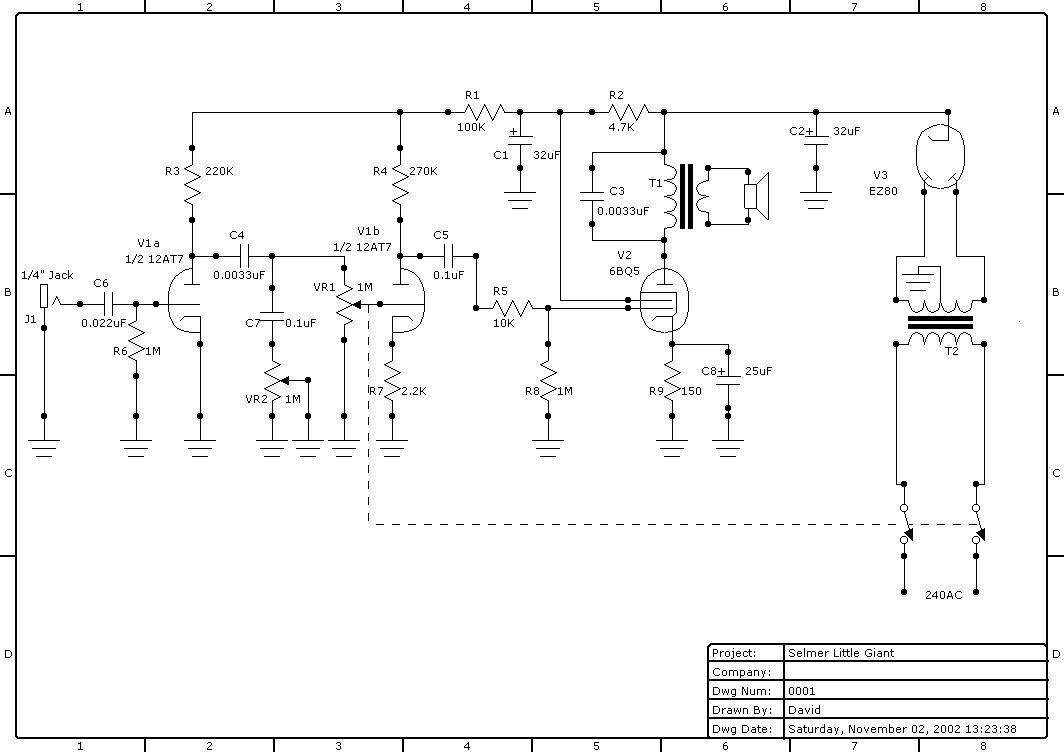

SELMER LITTLE GIANT 5 WATT AMPLIFIER - SCHEMATIC WIRING DIAGRAM
VERSION 1
COURTESY OF GARTH PORTER:
PLEASE NOTE GARTH'S COMMENTS ABOUT THE ABOVE DIAGRAM:
When I got the amp, the tone was working as a
volume. I presumed the problem was a faulty tone cap ( .1 mfg.) I replaced the
cap with another .1 mfg cap as per the schematic ( which was drawn from
my amp ) and the same problem occurred. Finally I tried a .005 cap, and voila,
the tone worked as a tone. Either the cap value as stated on the cct is wrong,
or I have some other problem in my amp that was remedied by the .005 cap. The
plate voltages on the 1st tube are a very low 30V DC. This perhaps is
something to do with it.
I am telling you this because you may make the
cct available on your site, and it may not be correct as explained above.
